XMINNOV
ISO18000-6C Gen2V1 Tamper & selfie stick UHF Reader
Both of wireless air protocol and USB RFID Reader
Support Windows, Android and iOS RFID Reader
Support 860-960Mhz (FCC, ETSI option)
Temperature Tolerance Calibration to be real temperature
If you want to connect using an iPhone, you need to search for "BU01 Reader" in the App Store and download it.
Support UHF tag protocol ISO18000-6C Gen2V1 / Gen2V2 compatible
Support operation systems: Windows/IOS/Android
Communication interface: BLE4.0/USB/TYPE-C
Reading distance: 50cm(depend on tag size)
Work time: continuous working 3 hours, query over 30 000 times.
Material: ABS+PC engineer plastic.
Battery capacity: 600mA
Charge method: USB 5V/0.5A,charge time 2 hours
Support to UHF LED light Buzzer tracking Tag basing on CAB0/CAB1 chip
Support to RSSI strength indicator
Support to UHF Tamper Detection check
Support to RFID UHF Temperature Sensor Tag measurement basing on CAB1 chip
LED Indicator: power indicator, connection indicator, working status indicator.
Buzzer: Build-in beeper
Switch: Twisting switcher
Operating Temperature: -20~60Celsius
Cloud Platform Management site: bracelet.xminnov.com
Cloud Platform Management default account & password: user 123456
SmartCheck DemoApp login account & password: user 123456
IVF-BU01 first generation is a portable dongle UHF Bluetooth reader, which can be connected to the intelligent system platform such as IOS and Android via Bluetooth interface, and also can be used to connect traditional computer PC through USB interface.
At the same time, there is 4 different kind of spare parts which are suitable for this multiple function Bluetooth RFID reader, wristband reader plus selfie stick parts, it will be easily be changed into a rod reader and a RFID writer device, which is convenient for industrial inventory / tracking purpose.
Normally in industrial field, it will require a special reader equipment in order to read or write electronic label from warehouse, industry area. Multi-function Bluetooth reader considered more user experience in application and expanding a new idea to the RFID system engineer with the miniaturization, low cost and lead any civilian to use UHF reader, it promote better the real popularization of the RFID application system.

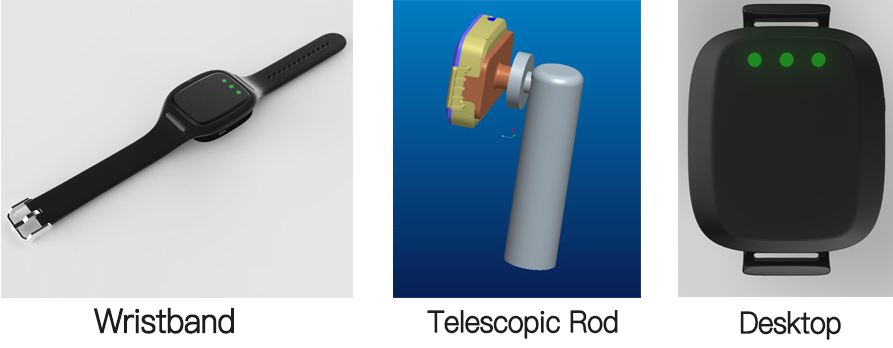

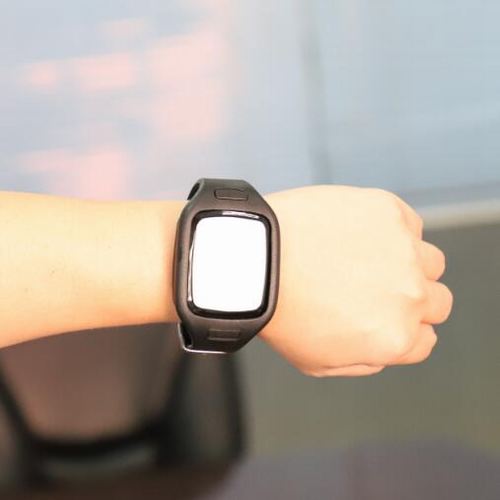

As this smart pocket reader with multiple operating method and quite low cost, it can be used like a wristband, selfie sticker telescopic rod reader, chest reader and desktop reader, concerning a super small size, highly suggest to have it used in warehouse, logistics, transportation, retailing, and anywhere.
It is suitable for mobile data collection in indoor and outdoor harsh environments. It is the first choice for data collection in various application environments such as asset management, inventory, and search.
How to use Bluetooth Rename Tool
