RFID Reader

  • BU01U-Type-C OTG 6dBi Waterproof All-in-one Integrated Reader
  • BU01U-Type-C OTG 6dBi Waterproof All-in-one Integrated Reader
  • BU01U-Type-C OTG 6dBi Waterproof All-in-one Integrated Reader
  • BU01U-Type-C OTG 6dBi Waterproof All-in-one Integrated Reader
BU01U-Type-C OTG 6dBi Waterproof All-in-one Integrated Reader BU01U-Type-C OTG 6dBi Waterproof All-in-one Integrated Reader BU01U-Type-C OTG 6dBi Waterproof All-in-one Integrated Reader BU01U-Type-C OTG 6dBi Waterproof All-in-one Integrated Reader

BU01U-Type-C OTG 6dBi Waterproof All-in-one Integrated Reader

    • All-in-one Reader suitable for UHF band RFID applications has the characteristics of high gain and low standing wave

    • Circular antennas will offer better performance than linear antennas when tag orientation is unpredictable or less controllable

    • High gain 6dbi RFID circular polarized antenna

    • Pleasing in appearance, environmental adaptability, easy installation

  • DataSheetSend Enquiry

BU01U-Type-C OTG 6dBi Waterproof All-in-one Integrated Reader

  • BU01U-Type-C OTG 6dBi Waterproof All-in-one Integrated Reader

  • Frequency range: 840-960MHz

  • Antenna Gain: 6dBi

  • 3dB half power angle: Hor:106°/ Ver:106°

  • Voltage Standing Wave Ratio/VSWR/SWR: ≤1.3

  • Characteristic impedance: 50Ω

  • Working Current at DC5V: 250mA(Maximum)/150mA(Average)

  • RF output: 26dBm (Max)

  • Polarization: circular polarization

  • Axial ratio: ≤2dB

  • Connector: Type-C USB OTG

  • Cable length: 3meter(support customization)

  • Reading range: >5meter

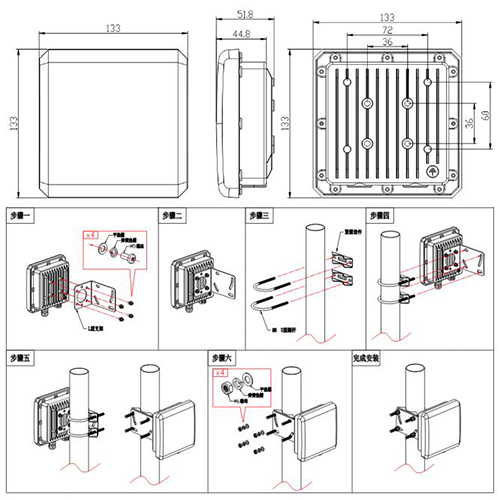

  • Antenna size: 133*133*52mm

  • Net weight: 0.92kg

  • Radiation material: F4B high frequency board/nickel-plated copper

  • Radome material: PC+ABS/ADC12 aluminum alloy

  • Radome Color: White/Anodized Silver, can be customized

  • Protection class: IP67

  • Pole diameter: φ40~φ50mm

  • Working temperature: -40~55°

Related Download -OTG 6dBi Waterproof All-in-one Integrated Reader

Presentation e-Catalogue Case Studies

Value Points

  • High gain, low standing wave, low axial ratio, high bandwidth, can achieve excellent tag reading performance within the working bandwidth.

  • The front-to-back ratio of the antenna is small, and the reader module needs to be physically shielded.

  • It is suitable for applications in asset tracking, inventory management, and track and trace.

  • Circular antennas propagate electromagnetic waves across two planes, covering their read areas in a helix or corkscrew pattern. This gives circular antennas a wider angle for reading than linear antennas can offer and enables reading regardless of how tags are oriented. When tag orientation is unpredictable or less controllable, circular antennas will offer better performance than linear antennas.
